High-Voltage Silicone Cable Compounds: A Cristobalite Trial Plan for Extrusion and Insulation
A grade-specific trial framework for cristobalite in high-voltage silicone cable compounds, covering mixing, extrusion records and finished-cable checks.
In high-voltage silicone cable compounds, a filler grade needs proof on the extrusion line and in the insulated cable—not only in a powder test.
Scope: a trial framework for cristobalite powder in high-voltage silicone cable compounds. It does not certify extrusion stability, insulation performance or cable compliance. Use the current TDS/COA, the customer’s compound and the applicable cable test method to confirm suitability.
Choose the grade record before setting the line trial
For an HV cable compound, powder parameters are only the starting point. The trial record should connect the specific cristobalite grade and incoming lot with compounding, extrusion and the finished insulated cable. That is what lets the engineer distinguish a material question from a processing change.
| Review item | Why it matters to the cable trial | Evidence to retain |
|---|---|---|
| Material identity | Cristobalite must not be evaluated as interchangeable with fused silica or generic silica powder. | Current grade TDS/COA and received-lot record. |
| Moisture and handling | Storage and feeding conditions can change what the mixer and extruder see. | Bag condition, storage, drying policy and feeding notes. |
| Extrusion and cable checks | A stable compound does not by itself confirm the finished insulation. | Line settings, sample IDs and cable-test method. |
Use supplied-batch information correctly
The current M4000 product record references one supplied batch with D50 6.15 μm, SiO2 99.63%, Fe2O3 0.009%, moisture 0.1% and whiteness 94%. These are supplied-batch reference values, not universal release specifications. Confirm every production or trial lot by the current TDS/COA.
Build an extrusion trial around the finished cable
- Fix the formulation: identify the silicone system, filler loading and any other additives held constant.

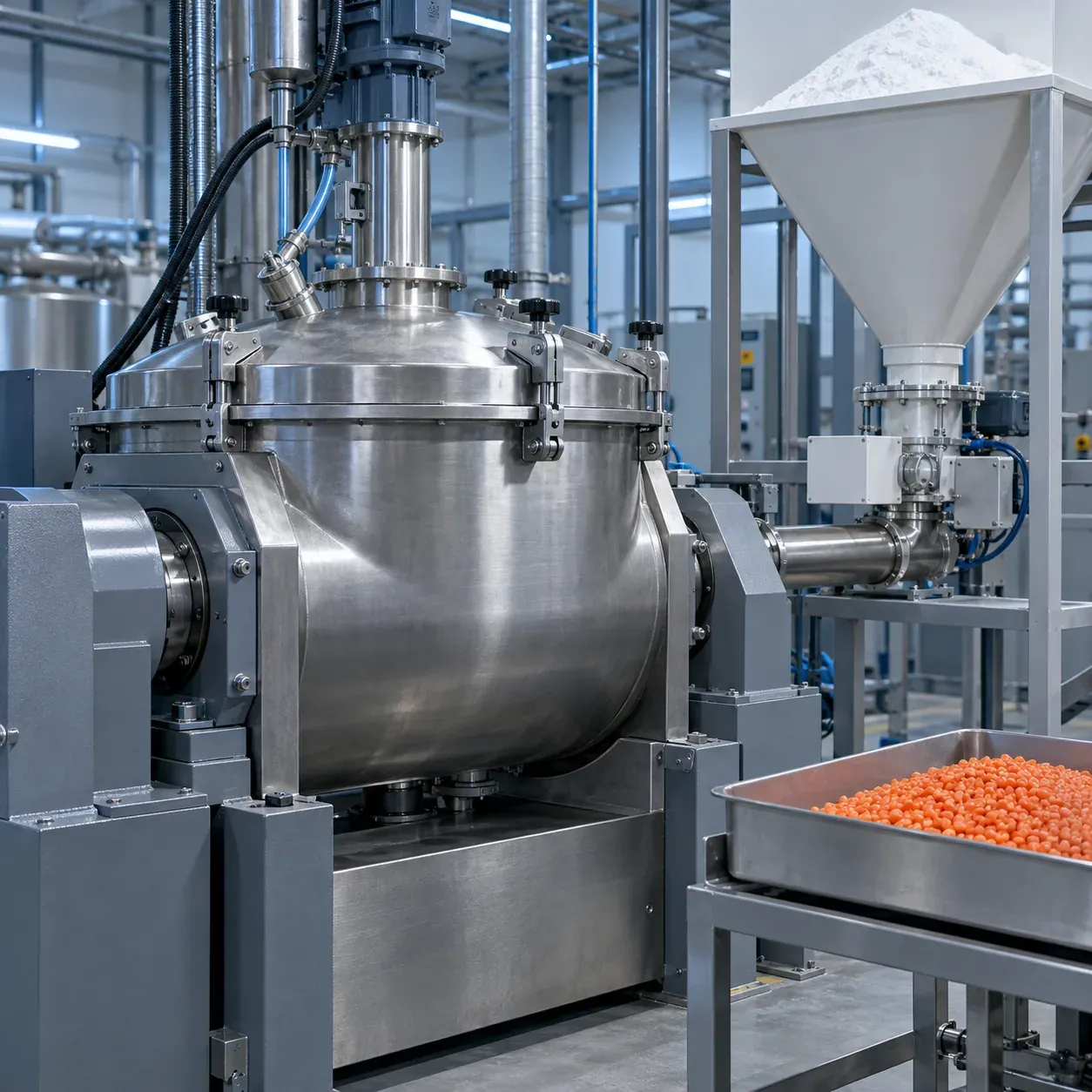

- Record the compound: document feed sequence, mixing time, temperature and visual or rheological observations required by the customer.

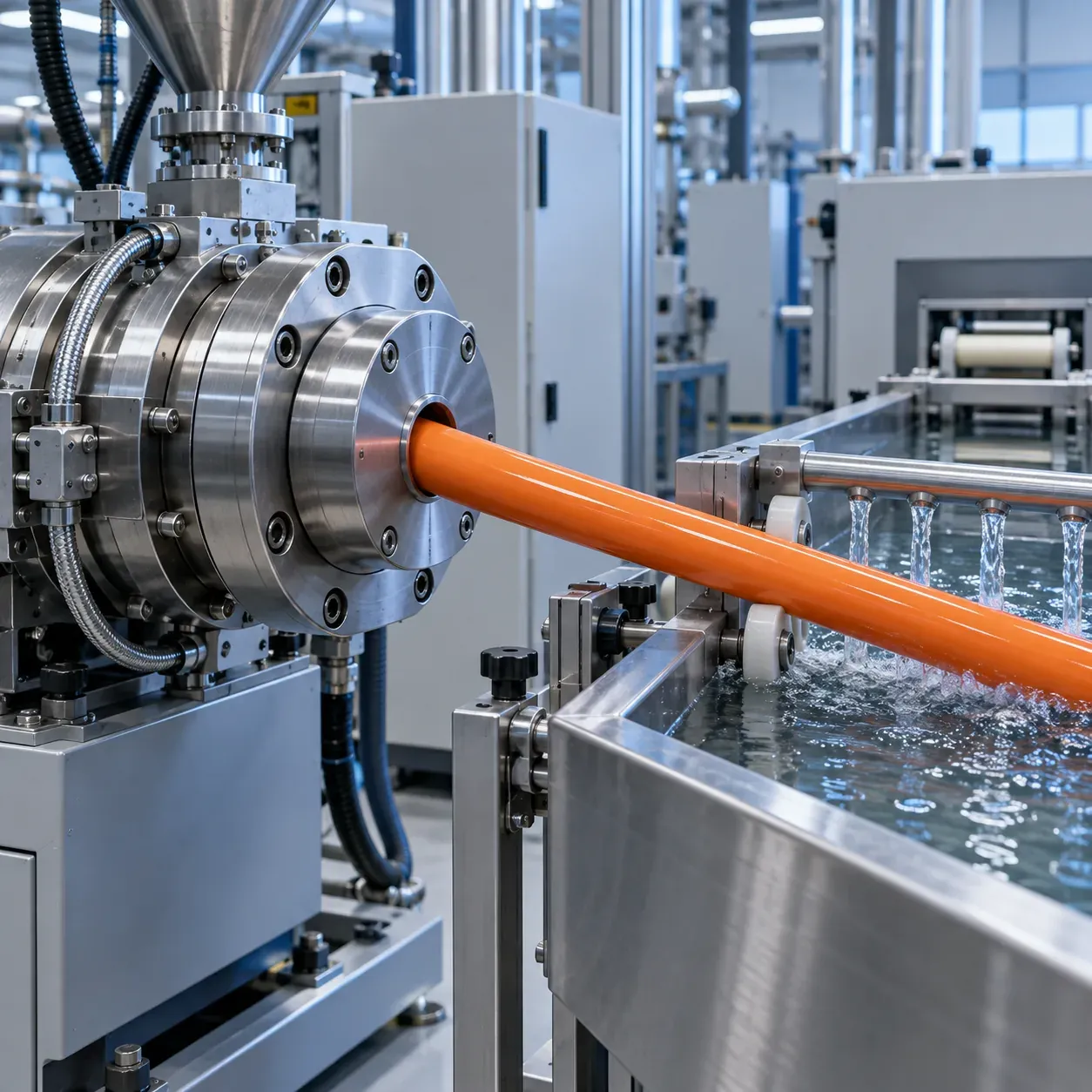

- Run the line: retain the extruder, die, line-speed and cure conditions with each cable sample ID.
- Test the cable: apply the specified finished-cable checks to the actual insulated construction.
Read the extruder and the finished cable separately
Extrusion observations help locate a processing window. The finished cable then provides the application-relevant evidence. Keep these two levels distinct so that a line adjustment is not misread as a material conclusion.
| Trial level | Question to answer | Typical output |
|---|---|---|
| Compound | Was the material prepared under the agreed conditions? | Batch record and retained sample. |
| Extrusion | Did the defined line run within its target operating window? | Line settings and cable sample IDs. |
| Finished cable | Does the constructed cable meet the customer’s agreed checks? | Test method, result and acceptance record. |

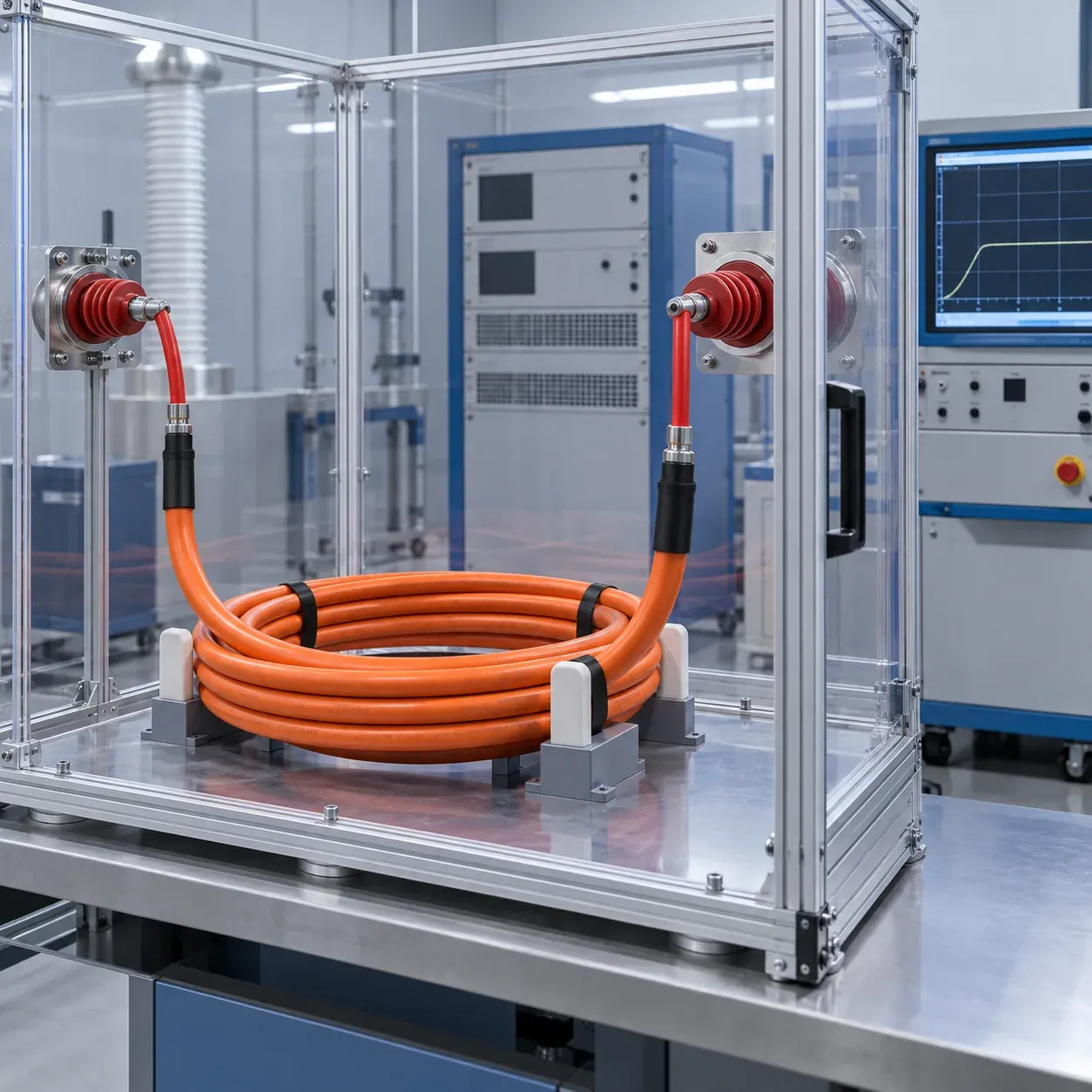

Electrical insulation checks must use the relevant cable method
Request the customer’s cable construction, voltage class, conditioning requirements and acceptance method before planning the final check. Results from a different insulation thickness, conductor design or fixture should be treated as context, not transferred proof.
Related Changtong Products
See Cristobalite Powder for EV High-Voltage Silicone Cable Compounds for the grade context. Send your silicone system, desired particle-size range, cable construction and quality-document requirements for a grade-specific reply.
FAQ
Are cristobalite and fused silica interchangeable in this trial?
No. Confirm the intended material phase and use the appropriate grade documentation before comparing formulations.
Is a historical supplied-batch COA enough for a new order?
No. It is reference context only. Confirm the current lot through the applicable TDS/COA and your incoming specification.
What should be included with the RFQ?
State the silicone system, filler target, cable construction, planned trial quantity, test method and required documents.
