Cristobalite in Technical Ceramic Bodies: Phase and Dimensional-Control Trials
A controlled technical-ceramic trial framework linking cristobalite phase, PSD, formulation, firing response and dimensional inspection.
Technical ceramics · Phase and dimensional control
Cristobalite should be evaluated as a defined crystalline phase inside a ceramic body—not as a generic white filler. This trial framework links phase evidence, PSD, formulation, firing and dimensional inspection.
Why Phase Must Be Fixed Before the Body Trial
Technical ceramic development often fails when a powder name is used as a substitute for phase and process evidence. Cristobalite, natural quartz and amorphous fused silica have different identities and thermal histories. The selected grade should therefore be tied to the ceramic matrix, forming route, green density, atmosphere and firing schedule.

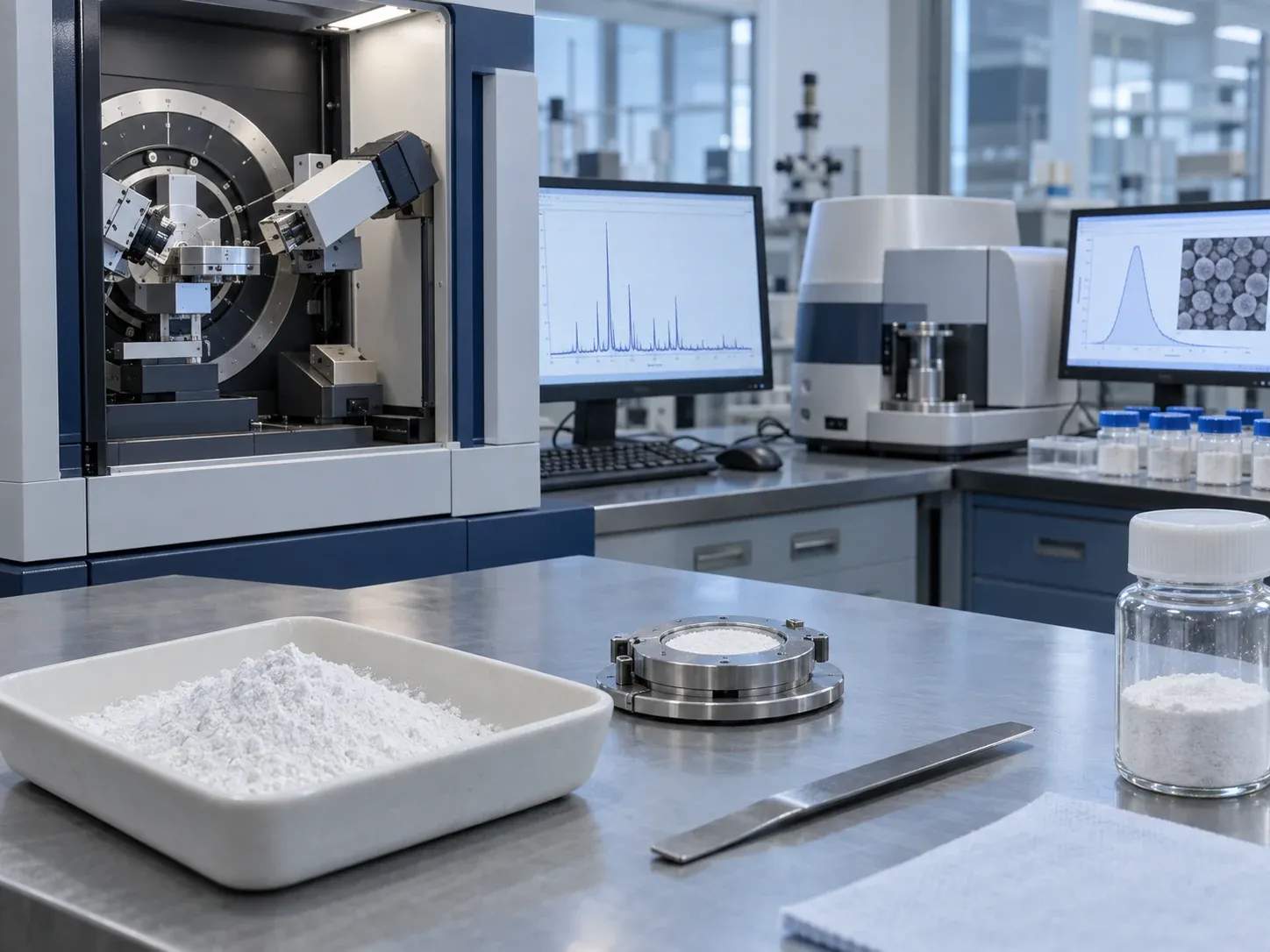

An incoming XRD check is useful, but it does not replace chemistry, PSD, moisture, morphology or fired-body measurements. The goal is a reproducible body trial with a traceable powder lot.
Specification Fields That Belong in the Trial Record
| Field | What to confirm | Body-level question |
|---|---|---|
| Phase composition | XRD method, sampling basis and current grade statement | Is the phase stable through the intended thermal route? |
| PSD and oversize | D10/D50/D90 or sieve method, μm or mesh basis | Does the powder pack, mix and form consistently? |
| Chemistry and moisture | Current TDS/COA and agreed test methods | Could impurities or moisture change firing response? |
| Thermal response | Customer DSC/dilatometry or firing evidence where needed | What dimensional-control risk must be measured? |
| Finished-body checks | Density, dimensions, strength, phase and thermal-cycle method | Does the selected body meet the actual service requirement? |
Controlled Body-Trial Sequence

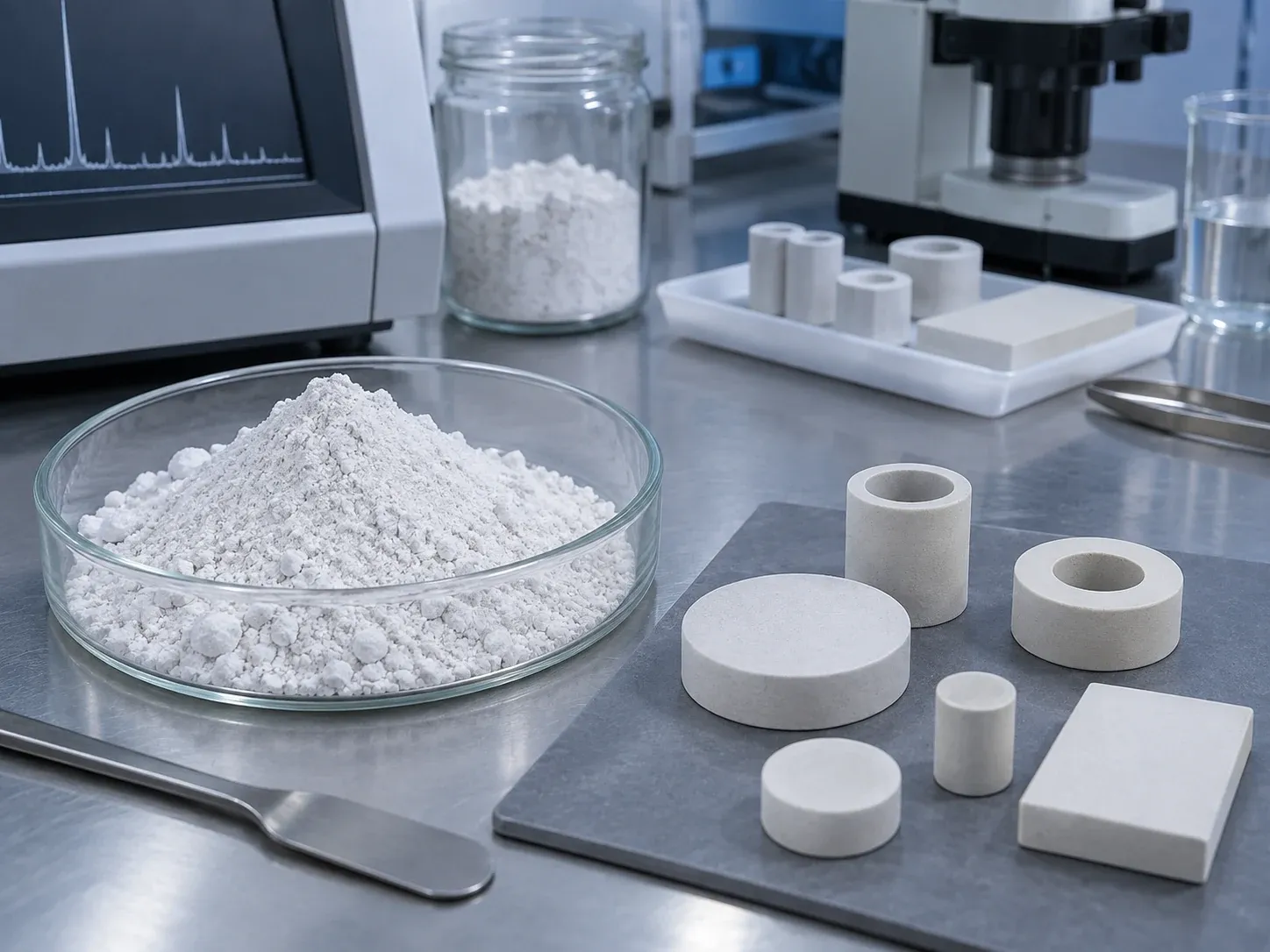

- Lock a baseline body. Record raw materials, binder, forming route, green density and kiln program.
- Change one cristobalite variable. Keep addition level, grade, PSD or phase decision isolated.
- Measure green behavior. Record mixing, flow, forming, demolding and green-part integrity.

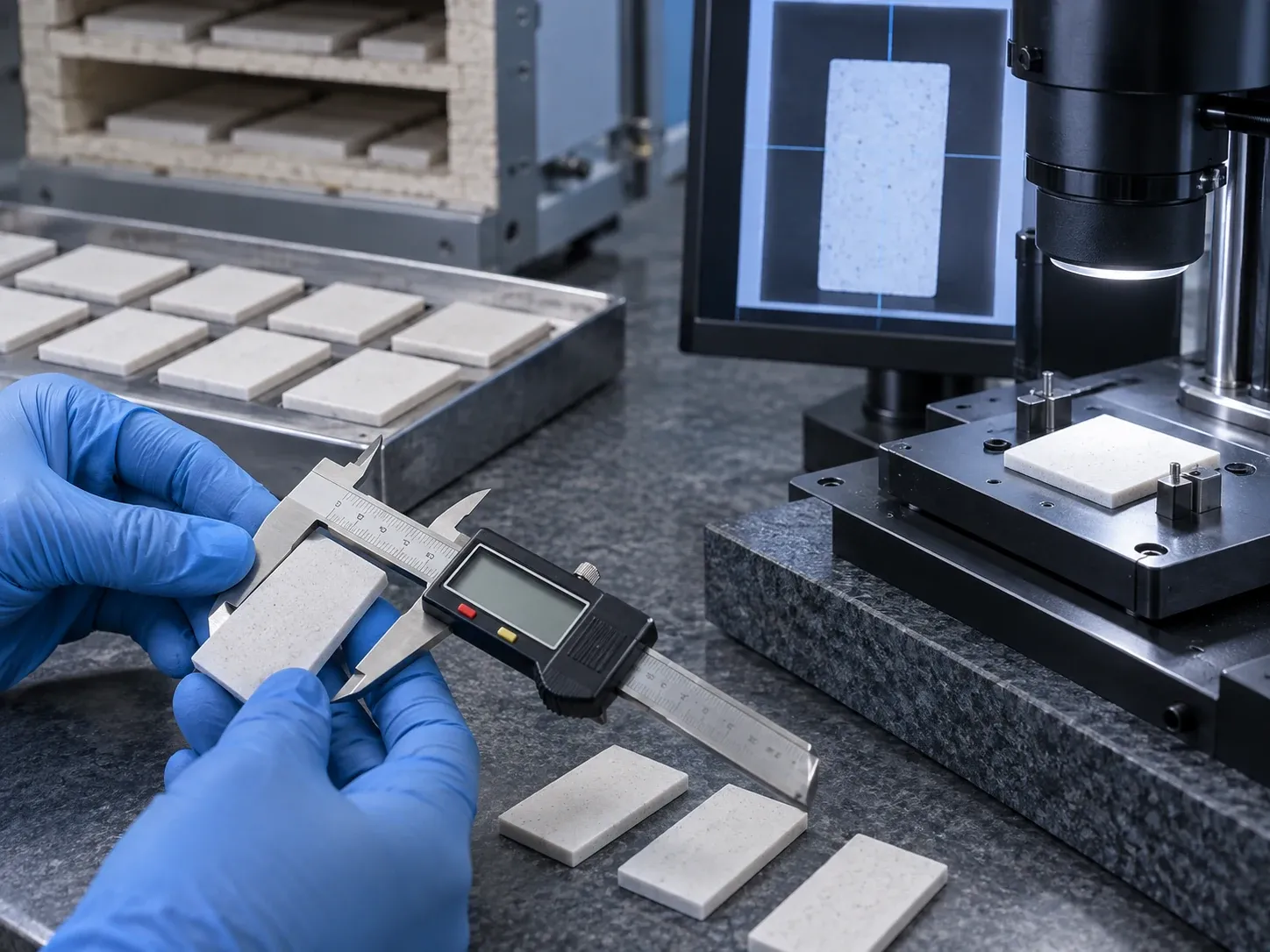

- Measure fired behavior. Check dimensions, density, strength, phase and thermal-cycle response using the agreed method.
Related Material Routes
Compare the controlled-phase cristobalite product direction with cristobalite for enamel frits and ceramic glazes when the application changes. If the body requires an amorphous phase, review amorphous fused quartz flour instead of copying crystalline-phase data.
FAQ
Does XRD prove finished ceramic performance?
No. XRD addresses a phase question. PSD, chemistry, moisture, forming and fired-body properties require separate methods.
Can cristobalite be replaced with fused silica without a new trial?
No. The phase and thermal history differ, so substitution requires a new formulation and firing qualification.
Request a Cristobalite Technical-Ceramic Trial Review
Send the matrix, forming route, phase method, PSD basis, firing schedule, target dimensions, sample quantity and document requirements.
